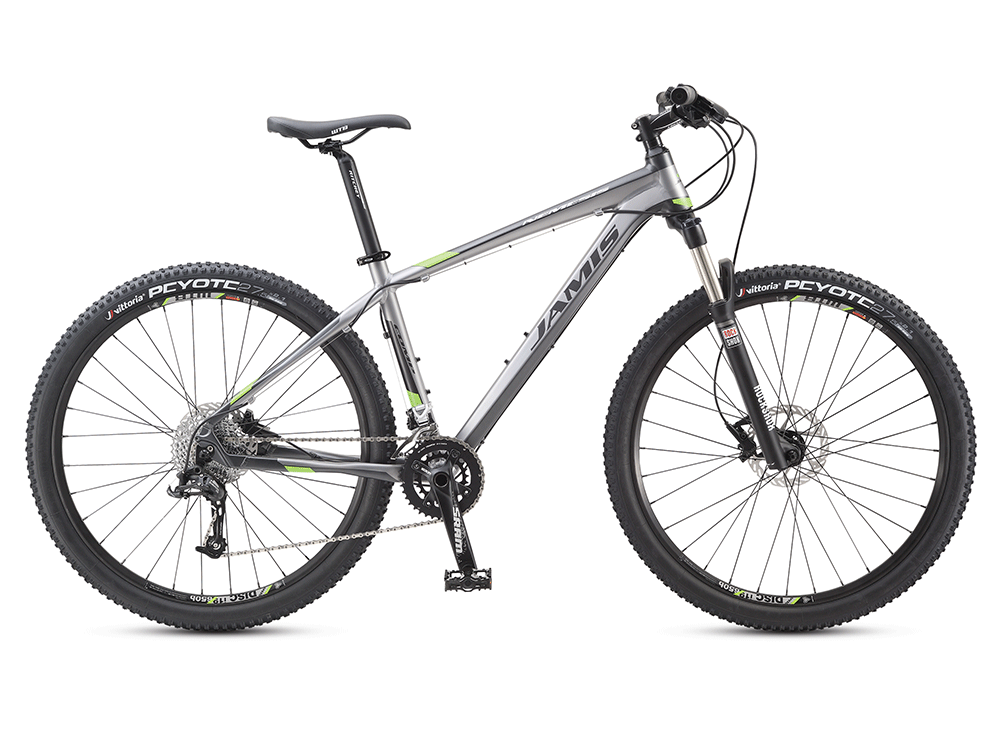

NEMESIS COMP

NEMESIS COMP
Mountain Bike

Fork : Rock Shox XC30 TK 27.5", solo air spring, external rebound, TurnKey lockout, 30mm stanchions, tapered aluminum steerer,100mm travel
Headset : FSA Orbit 1.5 Zero-Stack internal cup, 15mm cone spacer
Wheels : WTB Speed Disc i19 27.5" rims, Formula Hi-Lo flange alloy 6-bolt disc hubs, stain- less spokes
Tires : Vittoria Peyote, 27.5 x 2.1”
Derailleurs : SRAM X5 rear & X5 front
Shiftlevers : SRAM X5, 2x10-speed
Chain : SRAM PC 1031, 10-speed
Cassette : SRAM PG-1020, 10-speed, 11-36T
Crankset : SRAM S1000, 38/24T, 170mm (15") 175mm (17-21")
BB Set : TruVativ GXP
Pedals : ATB alloy platform
Brakeset : Avid DB1 hydraulic disc, G2CS 160mm rotors
Handlebar : Ritchey Mountain Low Riser, 31.8 x 20mm rise x 670mm
Stem : Ritchey 4-Axis, 6o x 90mm (15"), 100mm (17"), 110mm (19"), 120mm (21")
Grips : Dual compound
Seat Post : Ritchey 2-Bolt, 31.6 x 400mm
Saddle : WTB Volt Sport
Sizes : 15”, 17”, 19”, 21”
Color : Ano Palladium

GEOMETRY

SIZE

CENTER of BB toTOP of TT

EFFECTIVE TT LENGTH

HT ANGLE

ST ANGLE

CHAINSTAY

WHEELBASE

FORK RAKE

BB HEIGHT

HEADTUBE

STANDOVER

STACK

REACH

17.24/438

20.27/515

71.5 ̊

73 ̊

15.94/405

37.20/958

1.97/50

10.59/269

3.94/100

28.07/713

19.53/496

14.29/363

17.52/445

20.83/529

72 ̊

73 ̊

15.94/405

38.15/969

1.97/50

10.59/269

4.72/120

29.17/741

20.35/517

14.61/371

18.94/481

21.42/544

73 ̊

15.94/405

38.07/967

1.69/43

10.59/269

5.51/140

30.08/764

21.18/538

14.80/376

19.49/495

22.24/565

73 ̊

15.94/405

38.90/988

1.69/43

10.59/269

6.30/160

30.71/780

22.09/561

15.51/394

20.12/511

22.83/580

73 ̊

15.94/405

39.49/1003

1.69/43

10.59/269

7.09/180

31.38/797

22.83/580

15.83/402

20.75/527

23.23/590

73 ̊

15.94/405

39.92/1014

1.69/43

10.59/269

7.87/200

32.08/815

23.58/599

16.02/407
