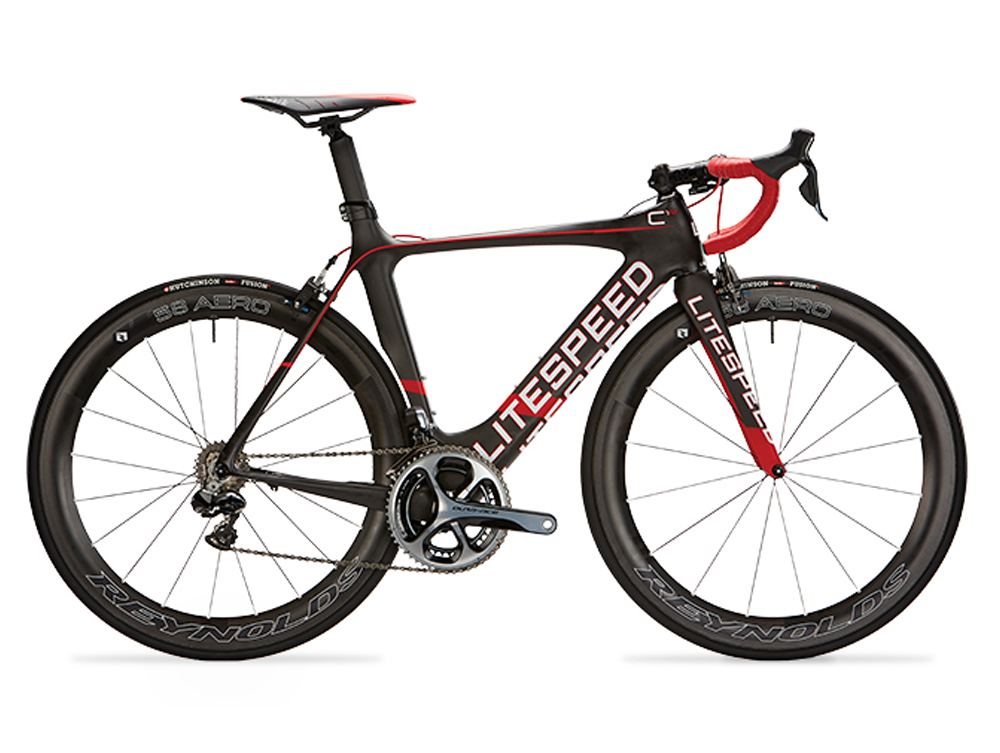

Cutting-edge.  Smart design. AeroLogic. The aerodynamic design of the C-series flagship, the C1R, was fine-tuned and tested in Charlotte's A2 wind tunnel. Carefully constructed with aerodynamics in mind at every turn- aero seat post, shrouded water bottle mount, and aero tuned tube cross-sections-the C1R reduces average aero wattage by almost 30 watts, a 16% advantage across all yaw angles compared to a traditional road bike.  It is not unlike adding an expensive pair of race wheels to a non-aero bike-minus the expense.

To round out this ground-breaking frame design, features such as full internal cable routing for all cables/wires, 60T carbon, Di2 compatibility and BB30 are incorporated for one loaded bike. Available as a frameset or completely decked out bike with Shimano Dura Ace Di2 components as shown.

Ride Highlights

• Ultra modulus nanotube carbon construction (60T)
• Available frameset or Shimano Dura Ace Di2
• Refined carbon construction for 13% increase in stiffness of front end
• Unique Aero shrouded water bottle mounting
• Morphed seat stay design to increase aero performance, stiffness and ride comfort
• Limited lifetime warranty



GEOMETRY & TECHNICAL SPECS

SIZE	TOP TUBE LENGTH (CM)	HEAD TUBE ANGLE	SEAT TUBE ANGLE	SEAT TUBE (C-T)	CHAIN STAY LENGTH	BB DROP (CM)	WHEEL BASE (CM)	FRONT CENTER (CM)	FORK RAKE (CM)	STAND OVER HEIGHT	HEADTUBE LENGTH (CM)	STACK	REACH
S	52.5	72.5	74.0	71.0	39.5	6.7	95.3	56.8	4.3	72.4	11.0	51.7	37.8
M	54.0	73.0	73.5	73.0	39.5	6.7	95.8	57.3	4.3	75.1	13.0	53.8	38.1
ML	56.0	73.0	73.0	75.0	39.5	6.8	97.4	58.8	4.3	75.9	16.0	56.7	38.7
L	57.0	73.0	73.0	78.0	39.5	6.8	98.3	59.8	4.3	79.8	18.5	59.1	38.9
XL	59.0	73.5	73.0	78.0	39.5	6.8	99.7	61.3	4.3	81.2	21.0	61.6	40.2
