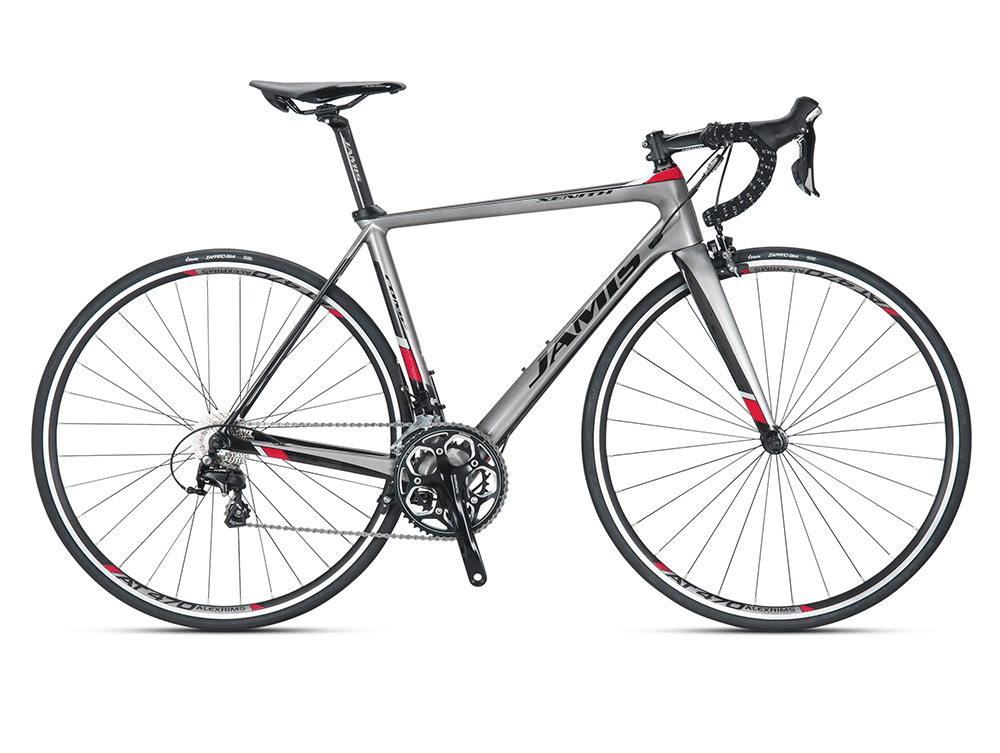

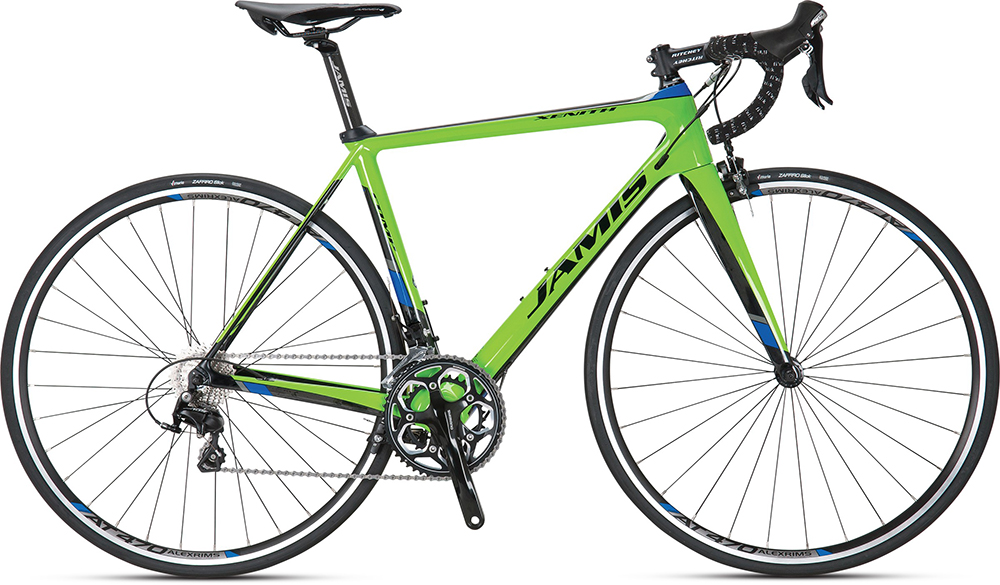

XENITH COMP

XENITH COMP
Road Bike

Fork : Jamis Road carbon composite fork, FEA optimized Near Net SPV molding process, 1.5” hollow formed crown, monocoque one-piece forming technology, carbon dropouts with stainless axle interfaces
Headset : FSA integrated, sealed bearing with nylon upper Compression ring, 1 1/8-1 1/2”
Wheels : Alex AT 470 rim with TCS (Tubeless Compatible System) with CNC sidewalls, 28/32H, Formula alloy hubs with QR and 14g black stainless steel spokes
Tires : Vittoria Zaffiro Slick, 700 x 23c
Derailleurs : Shimano 105 RD-5800 rear and 105 FD-5800 braze-on
Shiftlevers : Shimano 105, ST- 5800 Dual Control STI, 22-Speed
Chain : Shimano HG600, 11-Speed
Cassette : Shimano 11-Speed, 12-25T
Crankset : Shimano FC-RS500, 50/34T, 170mm (48/51), 172.5mm (54/56), 175mm (58/61)
BB Set : FSA EVO PressFit 30 with Wheels MFG EVO adaptors
Pedals : N/A
Brakeset : Shimano BR-5810 direct mount rear and BR-5800 dual pivot front calipers with cartridge pads and Shimano 105 ST-5700 STI brake levers
Handlebar : Ritchey Comp Logic, 6061 aluminum, 31.8 x 400mm (48/51) 420mm (54/56), 440mm (58/61)
Stem : Ritchey 4-Axis, 3D forged 6061 alloy, 6o x 90mm (48/51), 100mm (54/56), 120mm (58/61)
Grips : Fizik Superlight Microsoft Touch with Fizik logo and end plug
Seat Post : Jamis carbon fiber micro-adjust, 31.6 x 300mm with Jamis 7075-AL CNC aluminum 1-bolt seat post clamp
Saddle : Fizik Ardea Versus with Intergrated Clip system and MG rails
Sizes : 48, 51, 54, 56, 58, 61cm
Color : Galaxy Grey/Pure Lime

GEOMETRY

SIZE

CENTER of BB to TOP of TT

EFFECTIVE TT LENGTH

HT ANGLE

ST ANGLE

CHAINSTAY

WHEELBASE

FORK RAKE

BB HEIGHT

HEADTUBE

STANDOVER

STACK

REACH

17.24/438

20.27/515

71.5 ̊

73 ̊

15.94/405

37.20/958

1.97/50

10.59/269

3.94/100

28.07/713

19.53/496

14.29/363

17.52/445

20.83/529

72 ̊

73 ̊

15.94/405

38.15/969

1.97/50

10.59/269

4.72/120

29.17/741

20.35/517

14.61/371

18.94/481

21.42/544

73 ̊

15.94/405

38.07/967

1.69/43

10.59/269

5.51/140

30.08/764

21.18/538

14.80/376

19.49/495

22.24/565

73 ̊

15.94/405

38.90/988

1.69/43

10.59/269

6.30/160

30.71/780

22.09/561

15.51/394

20.12/511

22.83/580

73 ̊

15.94/405

39.49/1003

1.69/43

10.59/269

7.09/180

31.38/797

22.83/580

15.83/402

20.75/527

23.23/590

73 ̊

15.94/405

39.92/1014

1.69/43

10.59/269

7.87/200

32.08/815

23.58/599

16.02/407
