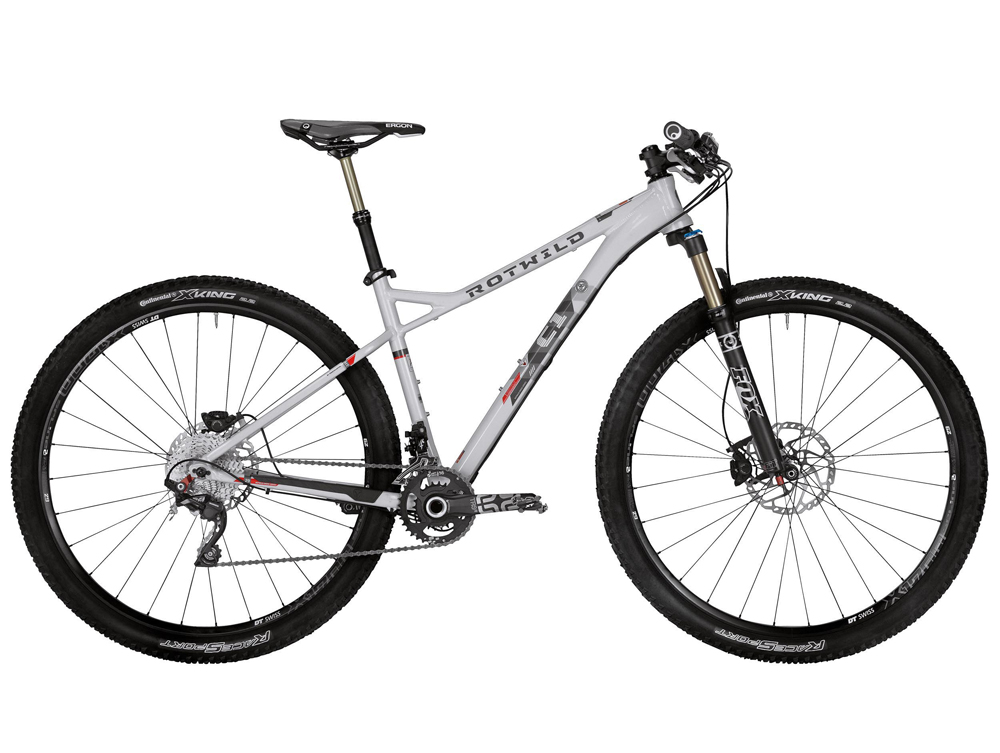

The C1 hardtails with their meticulously designed hydroforming frames show what can be achieved with high-end engineering on aluminium 6066. Extensive knowledge of material properties and the application thereof in specifi cally developed tubes enable the ROTWILD engineers to tune to high stiffness rates as well as fatigue and tensile strengths.
Precise wall thickness and exactly defi ned tube shapes result in light-weight and tenacious high-performance hardtails that can be used for serious racing as well as relaxed tours.
Colours: Chalkwhite Shiny / Greybrown Matt
| R.C1 HT 29 | PRO | |
| HEADSET | ROTWILD RHS 1.5 TAPERED TI | |
| FORK | FOX 32 FLOAT 100 FIT CTD PERFORMANCE | |
| BAR | CRANKBROTHERS COBALT2 740MM | |
| STEM | CRANKBROTHERS COBALT1 | |
| SEAT POST * OPTION |
CRANKBROTHERS COBALT2 Ø27.2MM * KIND SHOCK LEV INTEGRA REMOTE 100MM |
|
| SEAT | ERGON SME30 RW | |
| GRIPS | ERGON GA2 | |
| CRANK | E13 TRS+ DOUBLE 36-22T. | |
| SHIFTER | SHIMANO XT INTEGRATED | |
| FRONT DERAILLEUR | SHIMANO XT-2 | |
| REAR DERAILLEUR | SHIMANO XT-10 GS DM PLUS | |
| CASSETTE | SHIMANO HG81 11-36T. | |
| BRAKE | SHIMANO XT FIN PAD | |
| ROTOR | SHIMANO RT66 180/180MM | |
| WHEELSET | DT SWISS X1700 SPLINE 15 RWS | |
| TIRE | CONTINENTAL X-KING RACESPORT 29x2.20 | |
| FRAMECOLOUR | CHALKWHITE SHINY |

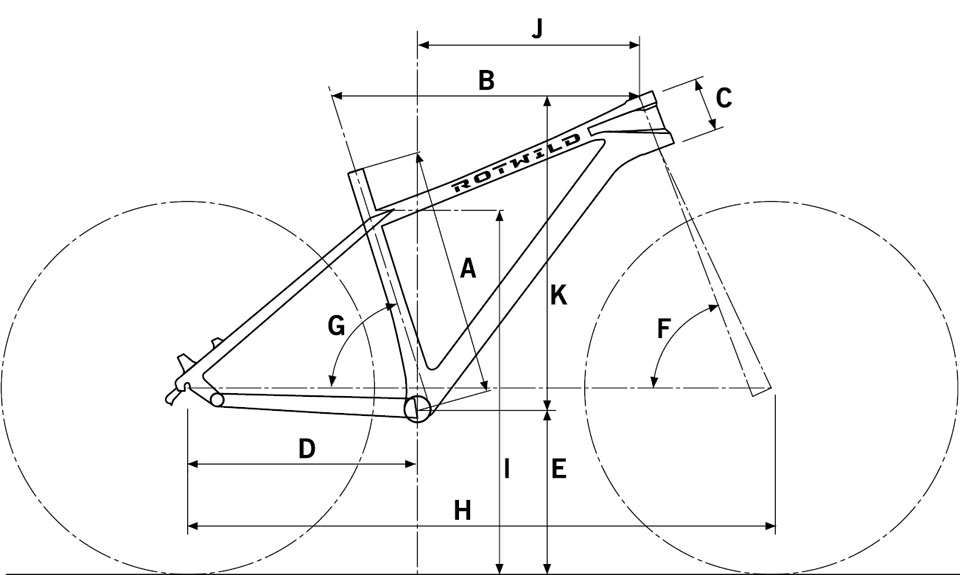

| SIZE | S | M | L | XL | |||
| A | SEAT TUBE LENGTH | (mm) | 440 | 460 | 500 | 540 | |
| B | TOP TUBE LENGTH | (mm) | 565 | 590 | 615 | 640 | |
| C | HEAD TUBE LENGTH | (mm) | 100 | 100 | 120 | 130 | |
| D | CHAIN STAY LENGTH | (mm) | 436 | 437 | |||
| E | BOTTOM BRACKET | (mm) | 300 | 305 | 305 | 305 | |
| F | HEAD TUBE ANGLE | ( ° ) | 70 | 70 | 70,25 | 70,25 | |
| G | SEAT TUBE ANGLE | ( ° ) | 74 | ||||
| H | WHEEL BASE | (mm) | 1.081 | 1.108 | 1.131 | 1.155 | |
| I | STANDOVER | (mm) | 679 | 714 | 739 | 771 | |
| J | REACH | (mm) | 397 | 423 | 445 | 467 | |
| K | STACK | (mm) | 627 | 622 | 628 | 639 | |
 |
 |
 |
 |
